Understanding Breadboards and Arduino Sketches

What is a Breadboard?

Breadboard Overview

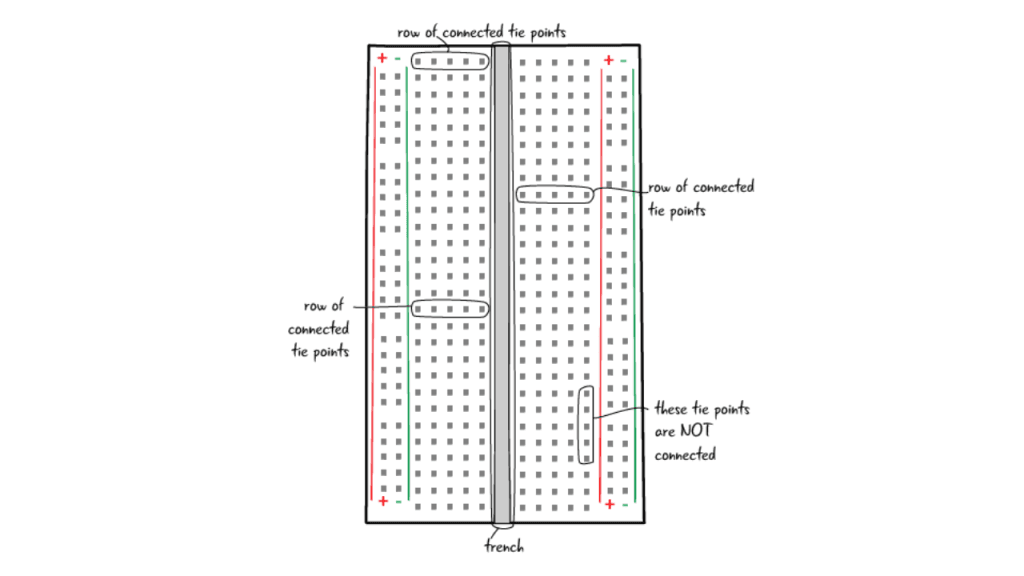

A typical breadboard with its key components labeled

A breadboard is a tool that helps you build electronic circuits without having to use any tools like soldering irons. Think of it as a LEGO base for electronics you can plug different parts into.

Perfect for Prototyping!

Breadboards are ideal for testing circuits and experimenting with different components before creating a permanent solution.

Key Parts of a Breadboard

Power Rails
Power rails provide easy access to power and ground connections
Terminal Strips
Terminal strips for connecting components

  1. Power Rails

    The lines running along the sides, marked with red (+) and blue (-) lines. These are used to distribute power throughout your circuit.

  2. Terminal Strips

    The middle section where components connect. Each row is internally connected, allowing components to interact.

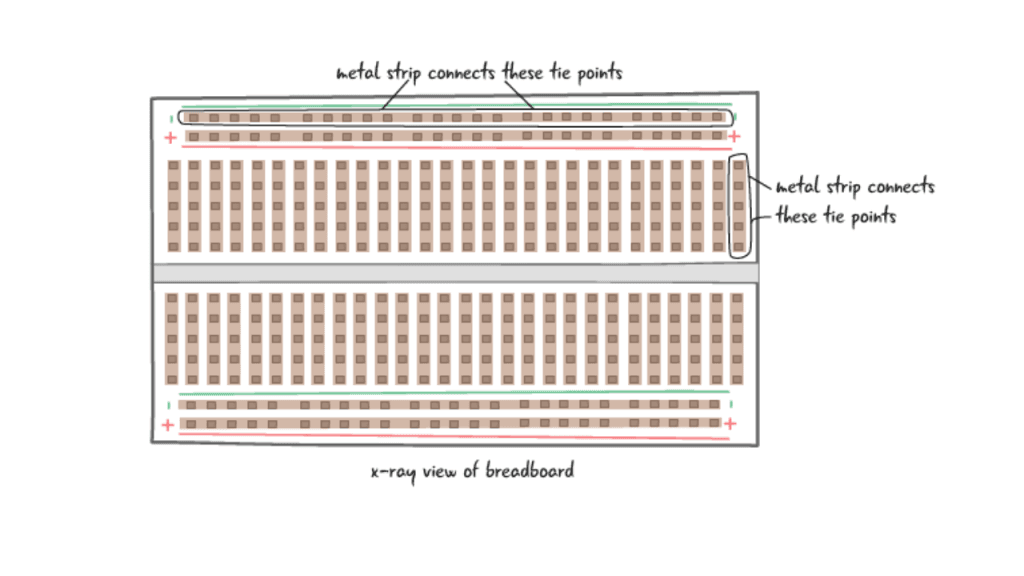

The holes in each row of the terminal strips are connected horizontally, while the power rails are connected vertically.

How to Use a Breadboard

Component Placement
Proper component placement on a breadboard
Circuit Example
Example of a complete circuit on a breadboard

  1. Insert Components

    Place electronic parts like LEDs, resistors, and buttons into the terminal strip holes.

  2. Connect with Jumper Wires

    Use jumper wires to create connections between components and power rails.

  3. Power It Up

    Connect the power rails to your Arduino or other power source.

Always double-check your connections before applying power! Incorrect wiring can damage components.

The Arduino Sketch

Arduino IDE

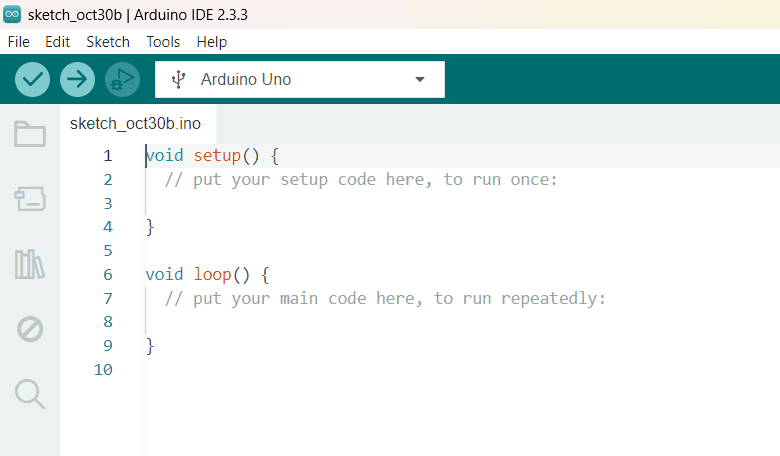

The Arduino IDE where sketches are written and uploaded

In Arduino, a sketch is your program - a set of instructions that control your board. It's written in the Arduino programming language, based on C/C++.

Key Concepts

Every Arduino sketch must have at least two functions: setup() and loop().

Sketch Structure
Basic structure of an Arduino sketch

Essential Functions

  • Setup Function - Runs once when the Arduino starts, perfect for initialization
  • Loop Function - Runs continuously, containing your main program logic

Here's a simple example sketch:

BasicSketch.ino
// Define pin numbers const int LED_PIN = 13; void setup() { // Initialize the LED pin as output pinMode(LED_PIN, OUTPUT); } void loop() { // Turn LED on digitalWrite(LED_PIN, HIGH); delay(1000); // Wait for 1 second // Turn LED off digitalWrite(LED_PIN, LOW); delay(1000); // Wait for 1 second }

    Best Practice: Always add comments to your code to explain what each part does. This makes it easier to understand and modify later!
